How to set up AmiBroker with eSignal feed (RT version only)

Requirements

IMPORTANT: You have to have eSignal application installed on your machine and a valid eSignal subscription.

One-time setup

To use AmiBroker with eSignal feed you will need to perform a one-time setup described below:

• Run AmiBroker
• Choose File->New database
• Type a new folder name (for example: C:\Program Files\AmiBroker\eSignal ) and click Create as shown in the picture below:




• Choose eSignal RT data Plug-in from Data source combo and "Enable" from Local data storage
• Enter appropriate number of bars to load:
  90000 for 1-minute database combined with long history daily database

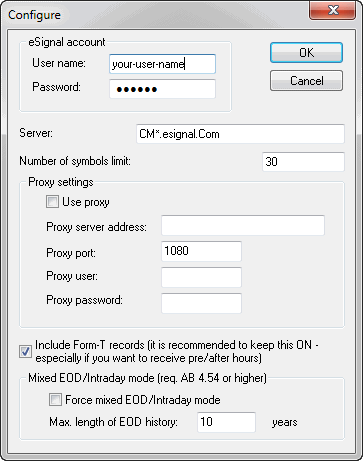

• Click on Configure button to show plugin configuration dialog as shown below


  Enter here your eSignal user and password (if you have eSignal properly installed AmiBroker will pre-set these fields to user/password entered in eSignal software). You may also adjust Number of symbols. This should not exceed your account limit and you may consider lowering this value if you want to use AmiBroker in parallel with another Data manager client application. (If you exceed the limit of your subscription AmiBroker will re-adjust this number down)

  Click OK
• Now choose Base periodicity. Note that recommended periodicity is 1 minute, but you can select all base periods starting from tick upto hourly.
  Note that selecting tick, 1-second, 5-seconds or 15-seconds periodicities will cause transmission of huge amounts of data from eSignal servers (for actively traded security it can be several megabytes for just one symbol and very few days of history). If you have a modem connection this setting is highly discouraged. Also if you should consider using 1-second bars instead of pure ticks since this mode is faster.

  Also note that to get long end-of-day histories together with intraday data you should go to File->Database Settings->Intraday Settings and turn ON "Allow mixed EOD/intraday data" option.


• Click OK.


From now on your AmiBroker reads quotes directly from the eSignal.

To learn how to use AmiBroker in Real Time mode read this tutorial article.
